CB series cantilever type balance arm

  • CB series cantilever type balance arm
  • Able to extend outward up to 820mm.
  • Able to operate with 360 degree free rotation.
  • Contains nitrogen spring, easy to grip the arm, will automatically return to the original position.
  • Able to equipped with HD series, MD series and MT series screwdrivers.
  • Option "handle switch" is available.
  • You can customized the connection plate if you wanted.

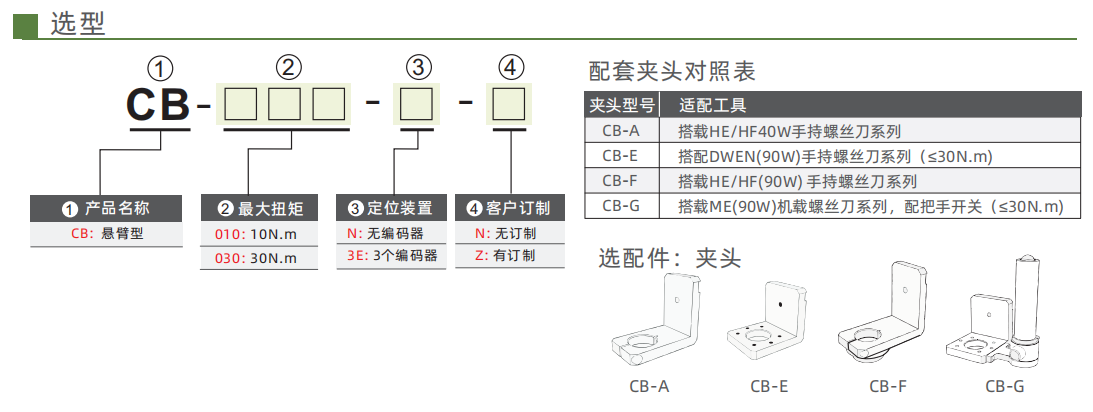

Model

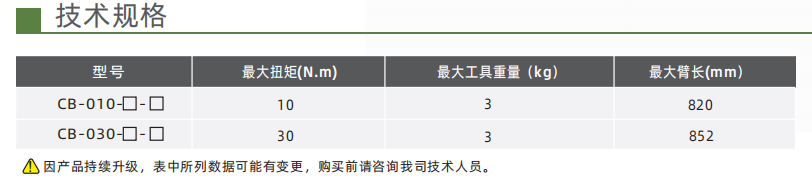

Specifications

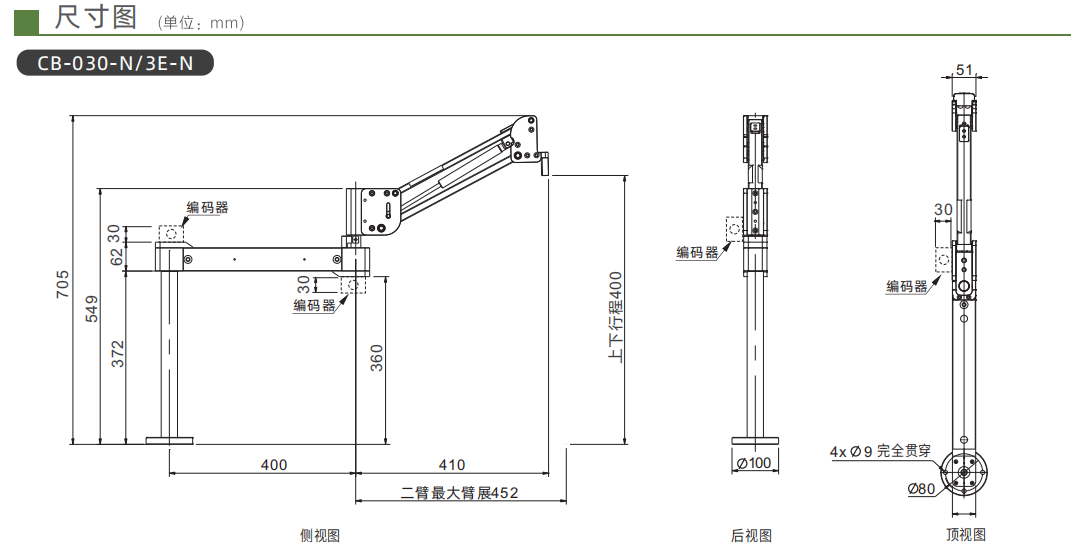

Dimensions

Controller

Download

Application
