SP Series

  • Sensors and connectors are made of SUS316L
  • Applicable fluid: Gas or liquid that does not corrode SUS316L
  • The shell adopts waterproof design, protection class Ip65
  • 2 switch output, NPN/PNP adjustable
  • Support analog voltage (1-5V) or analog current (4-20mA)
  • 7 pressure units are convertible
  • Wide pressure range: -0.1-2.5MPa
  • Dual screen, three-color display (red, green, orange)
  • Product Information:Pressure sensor brochure

Model

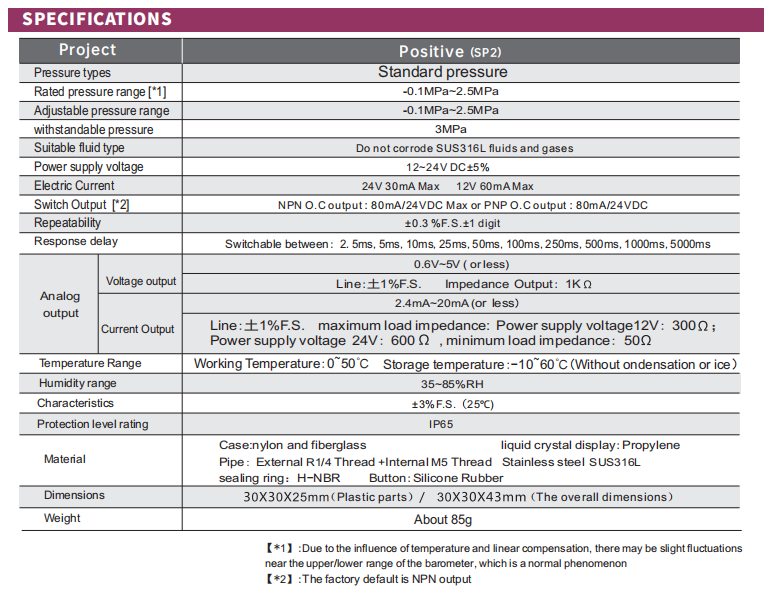

Specifications

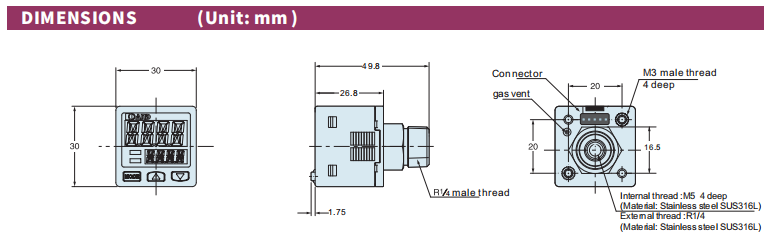

Dimensions

Controller

Download

Application
