SP Series
- Sensors and connectors are made of SUS316L
- Applicable fluid: Gas or liquid that does not corrode SUS316L
- The shell adopts waterproof design, protection class Ip65
- 2 switch output, NPN/PNP adjustable
- Support analog voltage (1-5V) or analog current (4-20mA)
- 7 pressure units are convertible
- Wide pressure range: -0.1-2.5MPa
- Dual screen, three-color display (red, green, orange)

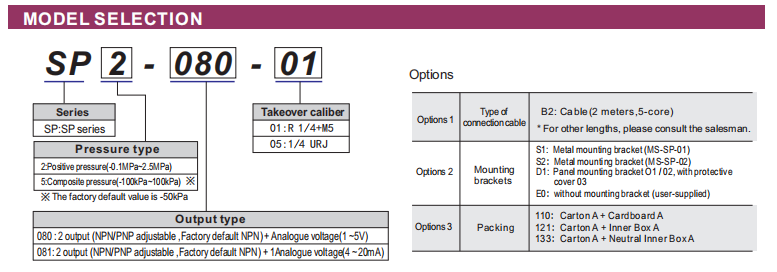

选型

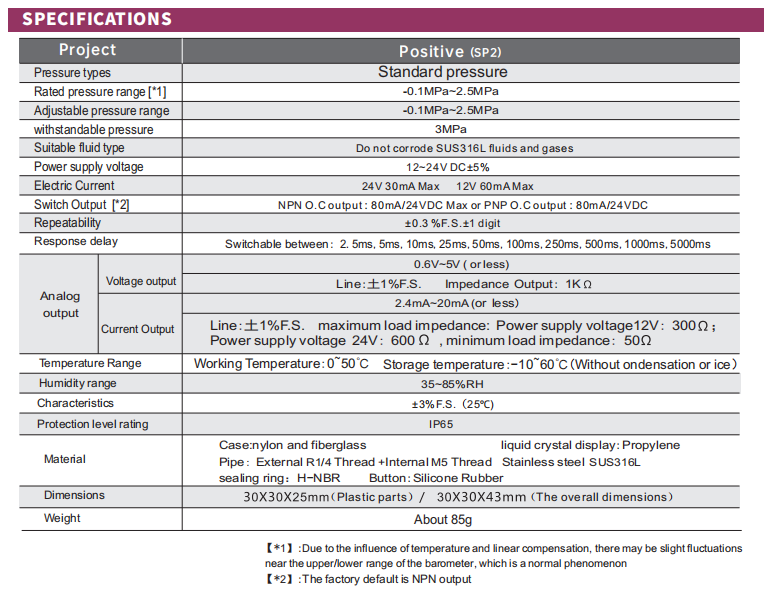

技术规格
注:以下型号均可选配安装板固定，详情请咨询我司技术人员!

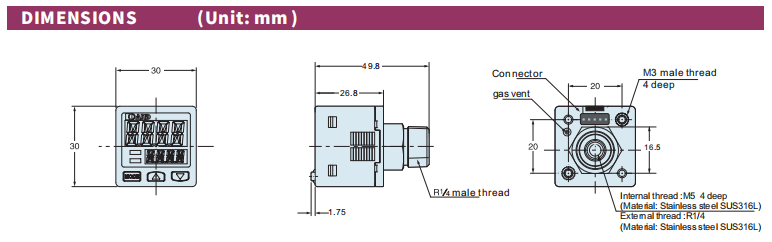

外观尺寸
(单位：mm）
Data download
