HNB series controller
- Patented Design
- TFT-LCD monitor able to display the setting, programming and status of the machine
- Lots of task modes that can be used for multiple assembly requirements
- Up to 8 different torque parameter settings per task
- Built-in servo driver can provide precise control of torque, corner monitoring and deceleration tightening
- Provides graphical tools for process optimization and diagnostics
- Programmable IO and system extension components for process control
- Communication interface for advanced data storage and factory control interaction
- Dual operation and monitoring functions, such as physical button and LED indicator light, to further improve the reliability of the controller

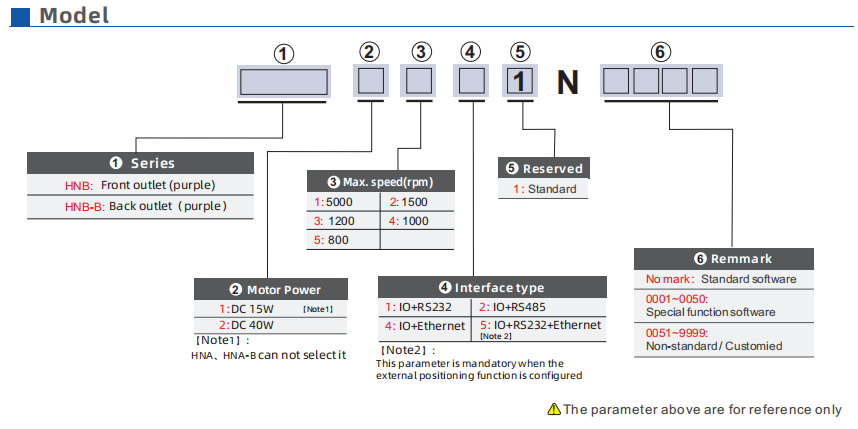

Model

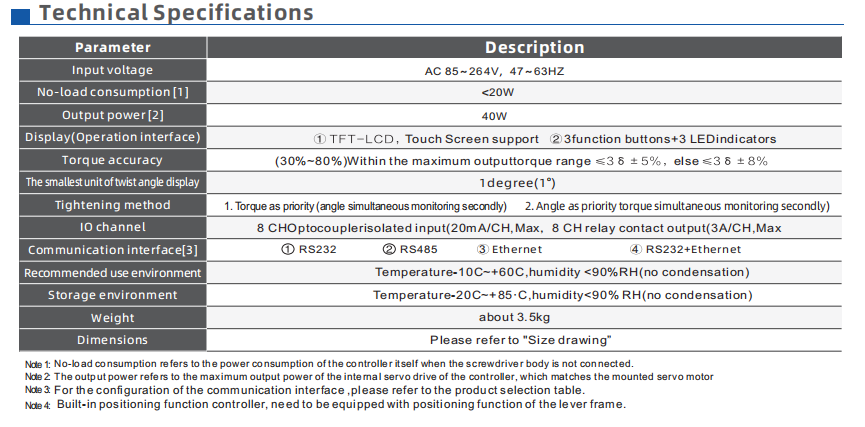

Technical Specifications

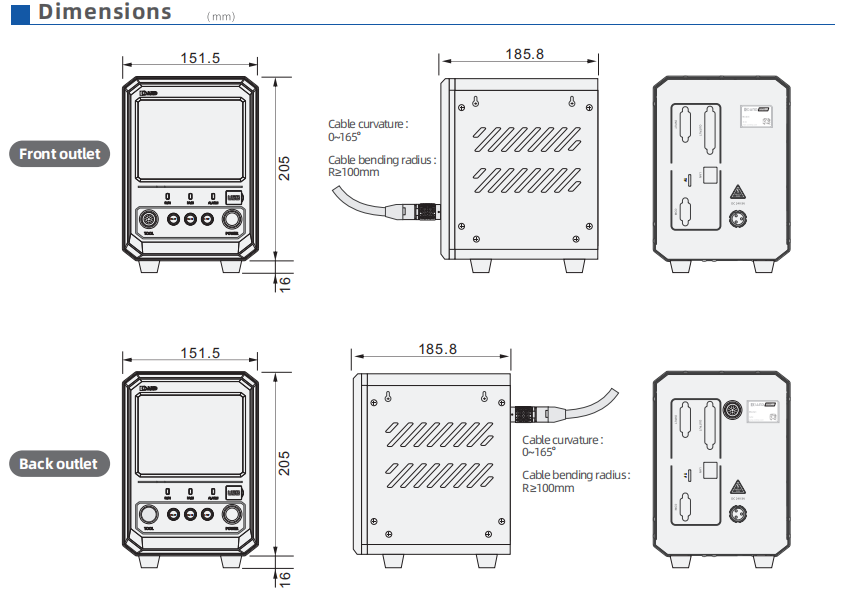

Dimensions
(单位：mm）
Data download
