XDS series controller
- 7 inch TFT touch screen
- Miniaturized design
- 12 task modes for a variety of assembly needs
- Up to 8 different torque Settings per task
- Drive and control integration can provide precise controlmethods such as torque, Angle and speed
- Provides i0 for process control
- Provide industrial commonly used RS232, RS485 communication
- Provide special upper computer software, including curves, datarecording and other functions
- Monitoring with LED indicators further improves controller reliability
- Convenient and flexible installation for a variety of applications

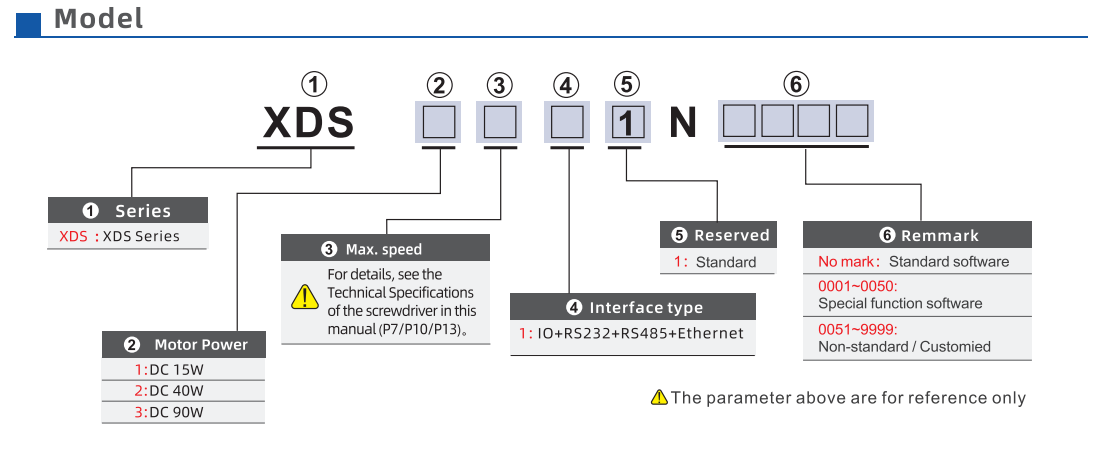

Model

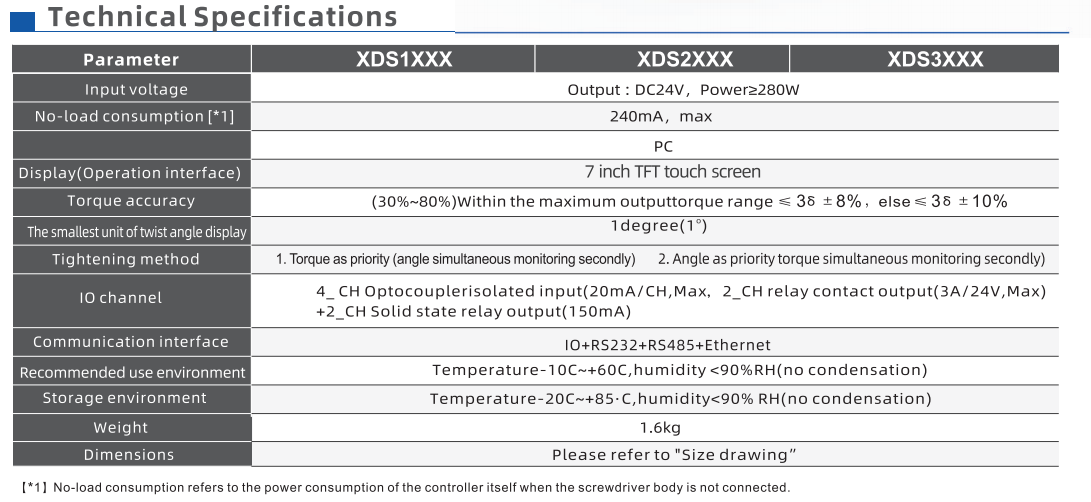

Technical Specifications

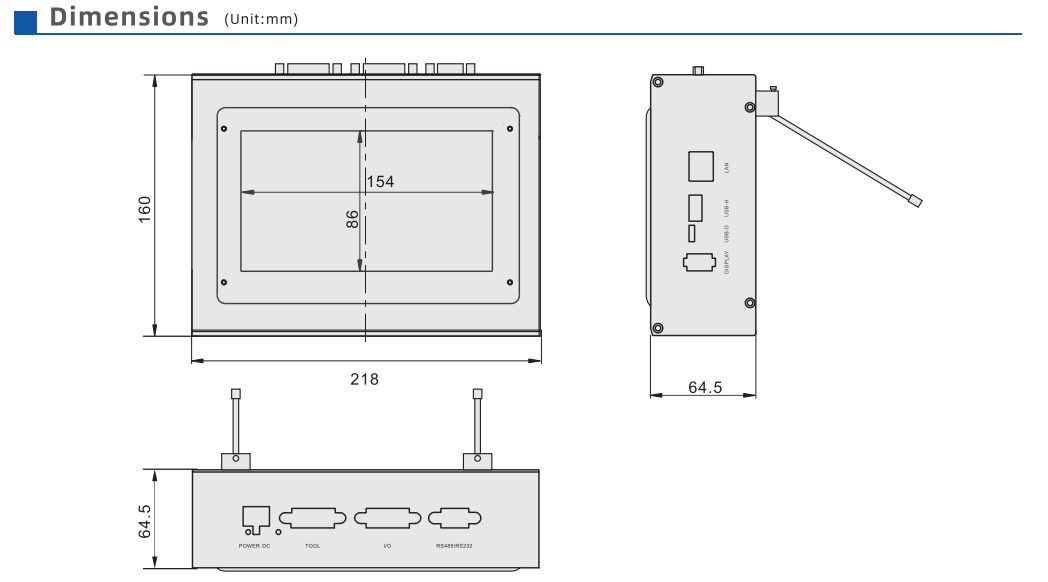

Dimensions
(单位：mm）
Data download
