EB series simple balance arm
- Adopt box type linear bearing, which can adapt to dusty working environment.
- Easy and flexible operation. Able to work at any point of 360° in the working range.
- The support rod is made by hard chromium-plated steel bar which makes it very reliable, can keep smooth even after long time operation.
- The rigidity of support rod and swing arm is designed according to 4 times safety factor, high rigidity, very hard to deformation, and still keep high vertical in long-term use.
- Hanging block and limit block are easy to adjust, adjustable range more than 300mm which brings strong adaptability.
- Can be equipped with movable cast iron seat, no need to fix it on the table, easy to install.
- Simple structure, reliable rust-proof exterior parts, no need for special maintenance.
- Arm span, height, screwdriver clamping block(clip) can be customized.

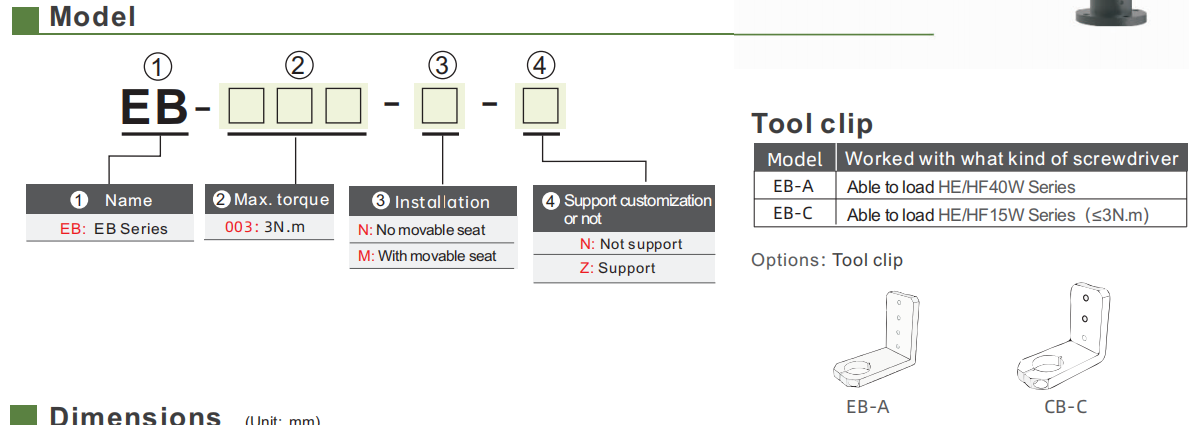

Model

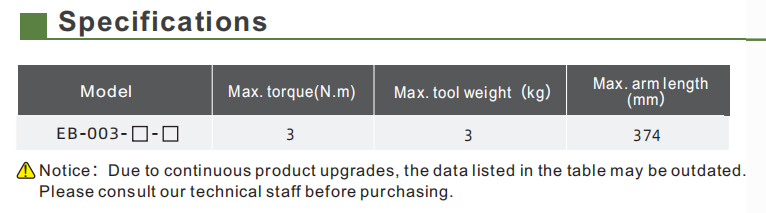

Technical Specifications

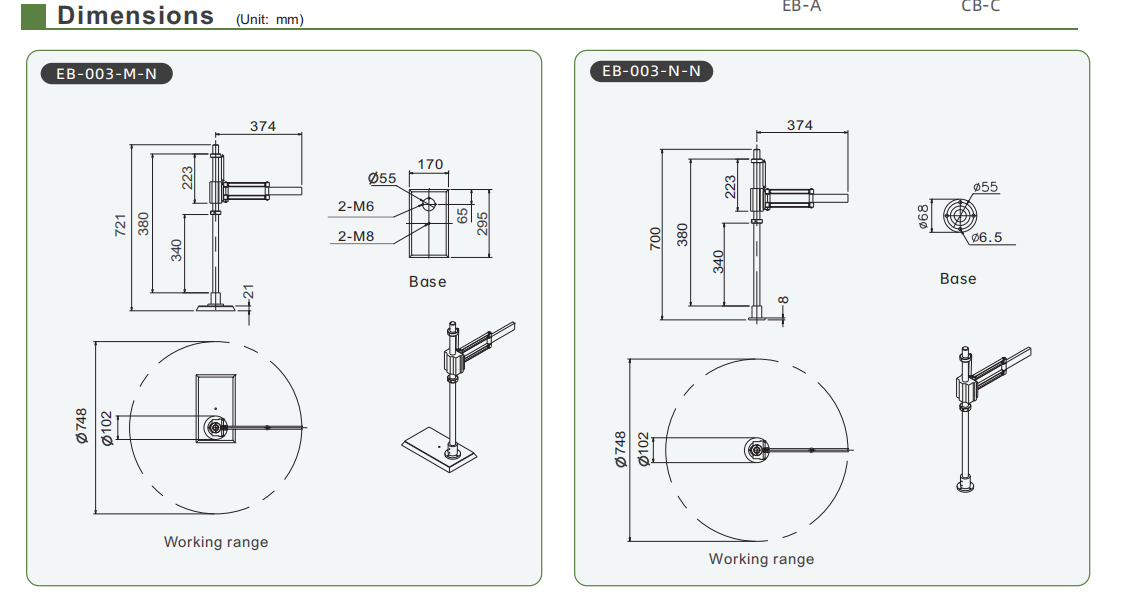

Dimensions
(单位：mm）
Data download
